Kev ntsuas hluav taws xob: 10000 kVA, 10 MVA
Thawj qhov ntsuas hluav taws xob: 25000V
Secondary Voltage ntsuam xyuas: 4160V
Kev sib txuas: YNd1

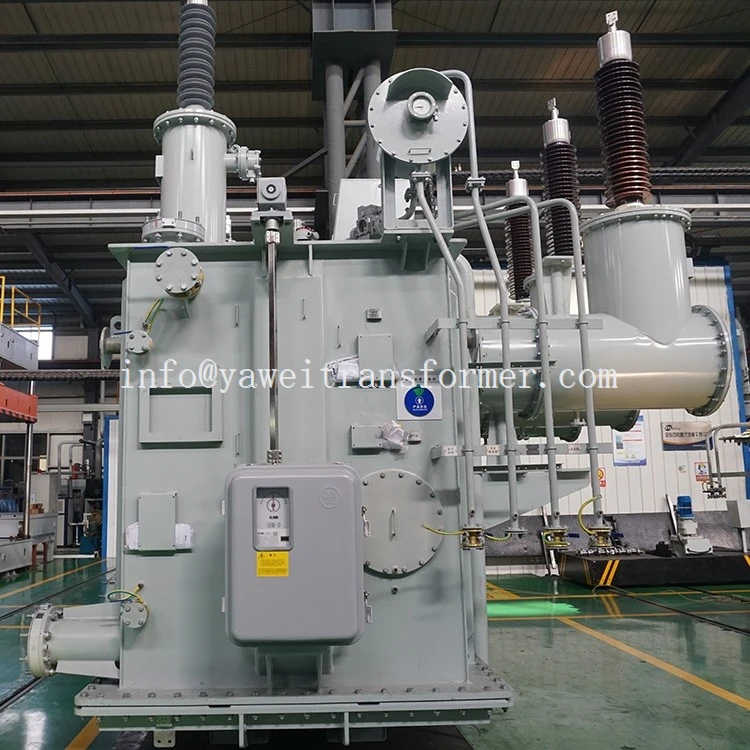

Hom: SL-10000-25-4.16 substation transformer
BIL: 60-150kV
Cov Qauv: CSA C88-16 & IEEE C57
Khoom Taw Qhia
Product Overview:
Qhov no yog 10000 kVA (10 MVA) substation transformer, uas yog ib qho tseem ceeb ntawm cov hluav taws xob faib hluav taws xob.
Nws yog tsim los txo qis kev sib kis hluav taws xob siab (xws li 110 kV lossis 220 kV) kom txo qis qhov hluav taws xob (xws li 4160V).
Substation transformers ntawm qhov loj me no yog qhov tseem ceeb rau kev faib hluav taws xob ntau ntawm cov hluav taws xob thoob plaws thaj chaw lossis rau cov neeg siv khoom loj.
Technical Specifications:
Rated Peev Xwm: 10000 kVA (10 MVA)
Thawj Voltage: 25000V
Secondary voltage: 4160V
Kev sib txuas: YNd1
BIL (Basic Impulse Insulation Level): 60-150 kV
Cov Qauv: CSA C88-16 & IEEE C57
Cov Qauv Zoo:
Tsim nyob rau hauv ISO 9001: 2015 certified zoo tswj system
Muaj ntawv pov thawj rau UL thiab CUL cov qauv rau Asmeskas thiab Canada
Certified rau CE cim rau ua raws li European qauv
Ua tib zoo kuaj lub Hoobkas ua ntej xa khoom
Hauv cov ntsiab lus, qhov no yog lub tshuab hluav taws xob muaj peev xwm siab tau tsim los hloov cov hluav taws xob muaj txiaj ntsig zoo thiab faib cov hluav taws xob ntau ntau raws li ib feem ntawm cov phiaj xwm phiaj xwm. Cov qauv nruj nruj thiab cov ntawv pov thawj ua kom ntseeg tau tias kev ua tau zoo.
Cov ntawv thov raug siv thiab siv rooj plaub rau 10000 kVA substation transformer
Hluav taws xob substations:
Lub 10000 kVA substation transformer feem ntau pom muaj nyob rau hauv hluav taws xob substations, uas yog ib qho tseem ceeb junctions nyob rau hauv daim phiaj fais fab.
Substations pab txhawb kev hloov hluav taws xob los ntawm cov chaw tsim hluav taws xob rau cov neeg siv khoom hauv thaj chaw, kev lag luam, thiab kev lag luam.
Kev hloov pauv voltage:
Lub luag haujlwm tseem ceeb ntawm lub tshuab hluav taws xob no yog txhawm rau txo qis kev sib kis hluav taws xob siab, xws li 110 kV lossis 220 kV, kom txo qis hluav taws xob zoo li 4160V.
Qhov kev hloov pauv hluav taws xob no yog qhov tseem ceeb rau kev faib hluav taws xob thoob plaws cheeb tsam los ntawm kev faib khoom network.
Loj-Scale Power Distribution:
Nrog lub peev xwm ntawm 10000 kVA (10 MVA), qhov kev hloov pauv no muaj peev xwm tuav cov khoom siv hluav taws xob ntau.
Nws yog qhov zoo rau kev faib cov hluav taws xob ntau ntau los ua haujlwm rau thaj chaw dav lossis cov neeg siv khoom loj.
Grid Infrastructure Support:
Substation transformers ntawm qhov loj me no ua lub luag haujlwm tseem ceeb hauv tag nrho cov hluav taws xob hluav taws xob hluav taws xob hluav taws xob.
Lawv ua raws li cov kev sib tshuam tseem ceeb, ua kom muaj txiaj ntsig zoo ntawm kev hloov hluav taws xob los ntawm cov chaw tsim khoom mus rau cov neeg siv kawg.
Kev lag luam thiab kev lag luam:
10000 kVA substation transformer tuaj yeem siv rau hauv cov chaw tsim khoom, chaw tsim khoom, chaw ua lag luam, lossis lwm tus neeg siv hluav taws xob loj.
Nws muab qhov tsim nyog hloov pauv hloov hluav taws xob thiab lub zog tuav lub peev xwm los txhawb lub zog xav tau ntawm cov haujlwm no.
Hauv cov ntsiab lus, thawj daim ntawv thov ntawm 10000 kVA substation transformer yog nyob rau hauv hluav taws xob substations, voltage transformation rau lub hwj chim faib, loj-scale fais fab kev faib, thiab txhawb tag nrho cov hluav taws xob daim phiaj infrastructure, tshwj xeeb tshaj yog rau cov neeg lag luam thiab kev lag luam.
Cov Qauv Zoo Ntawm Cov Khoom
1.Quality tswj system GB/T 19001-2016 ISO 9001: 2015
Kev khiav hauj lwm ntawm tag nrho YAWEI system yog nruj me ntsis tswj thiab tswj. Qhov no ua kom cov khoom zoo thiab cov khoom siv nyob rau hauv txhua theem, los ntawm kev tau txais cov neeg thov kev tsim qauv, cov khoom siv, kev tsim khoom, kev teeb tsa, kev sim, ntim, xa khoom, tom qab muag, tag nrho cov uas ua haujlwm hauv cov txheej txheem nruj thiab cov txheej txheem sib txuas.
2.CERTIFICATEOFCOMPLIANCE ntawm UL thiab CUL
YaWei ncoo mounted transformer tau raug soj ntsuam los ntawm UL raws li US thiab Canada Standard(s). Peb transformer tau ntawv pov thawj los ntawm UL raws li Canadian cov qauv (CSA qauv).
3.Accreditation daim ntawv pov thawj CE
Txuj: EN 60076-1:2011.EN 60076-2:2011EN 60076-14:2013 lees paub tias YAWEI kev ua tau zoo ua tau raws li qhov yuav tsum tau muaj ntawm txhua qhov tshwj xeeb thoob ntiaj teb cov qauv rau kev sim thiab ntsuas qhov ntsuas. Tag nrho cov khoom lag luam YAWEI raug kuaj tag nrho hauv chav kuaj tsim nyog ua ntej tawm hauv lub hoobkas, ua kom zoo ruaj khov thiab muab kev thaj yeeb nyab xeeb rau cov neeg siv khoom.
|
YAWEI 110KV Peb Theem Copper 100% Fais Fab Transformer |
||||||
|
Rated Peev xwm (kVA) |
Tsis muaj load poob (kW) |
Kev poob qis (kW) |
Off-load Tam sim no |
Luv Circuit Court impedance |
Qhov Loj (LxWxH) (mm) |
Qhov hnyav tag nrho (kg) |
|
6300 |
10 |
36.9 |
0.6% |
10.5% |
4540 x4350x4580 |
21100 |
|
8000 |
12 |
45 |
0.6% |
4860x4400x4630 |
24600 |
|
|
10000 |
14.2 |
53.1 |
0.5% |
4900x4450x4830 |
27900 |
|
|
12500 |
16.8 |
63 |
0.5% |
5010x4500x4960 |
31600 |
|
|
16000 |
20 |
77 |
0.45% |
5620x4520x5080 |
35600 |
|
|
20000 |
24 |
91.7 |
0.4% |
5730x4550x5200 |
39800 |
|
|
25000 |
28.4 |
110.7 |
0.4% |
5820x4590x5290 |
45200 |
|
|
31500 |
33.5 |
133.2 |
0.35% |
5930x4820x5400 |
49600 |
|
|
40000 |
40.4 |
156.6 |
0.3% |
6100x4930x5500 |
57100 |
|
|
50000 |
47 |
194.4 |
0.25% |
6450x5050x5590 |
64700 |
|
|
63000 |
56.8 |
234 |
0.25% |
6970x5190x5690 |
71800 |
|
|
YAWEI 220KV Peb Theem Copper Fais Fab Transformer Main Technical Parameters |
|||||
|
Rated Peev xwm (kVA) |
Qhov hluav taws xob siab (kV) |
Kev sib txuas Symbol |
Tsis muaj load poob (kW) |
Kev poob qis (kW) |
Off-load Tam sim no (%) |
|
31500 |
220/230 |
YNd 11 |
35 |
135 |
0.7 |
|
40000 |
41 |
157 |
0.7 |
||
|
50000 |
49 |
189 |
0.65 |
||
|
63000 |
58 |
220 |
0.65 |
||
|
75000 |
67 |
250 |
0.6 |
||
|
90000 |
77 |
288 |
0.55 |
||
|
120000 |
94 |
345 |
0.55 |
||
|
150000 |
112 |
405 |
0.5 |
||
|
160000 |
117 |
425 |
0.49 |
||
|
180000 |
128 |
459 |
0.46 |
||
|
240000 |
160 |
567 |
0.42 |
||
Cov khoom tseem ceeb ntawm YAWEI
