Neutral Ground Resistor: Kev daws teeb meem tseem ceeb rau kev nyab xeeb thiab txhim khu kev ntseeg ntau dua
Raws li cov tshuab hluav taws xob ua kom loj dua thiab nyuaj dua, kev tiv thaiv cov cuab yeej los ntawm kev ua txhaum hauv av tau dhau los ua qhov tseem ceeb. Cov khoom siv hluav taws xob, cov chaw tsim khoom, cov chaw khaws ntaub ntawv, thiab cov phiaj xwm hluav taws xob tauj dua tshiab txhua tus nyob ntawm kev txhim khu kev qha hauv av kom ua haujlwm tau zoo.
A Nruab nrab hauv av resistor (NGR)yog ib feem tseem ceeb ntawm txoj kev tiv thaiv no. Nruab nruab nrab ntawm lub transformer nruab nrab point thiab grounding system, ib tug nruab nrab hauv av resistor pab txwv tsis pub tam sim no thaum lub hauv av txhaum. Qhov no txo qis kev ntxhov siab ntawm cov khoom siv hluav taws xob, txhim kho kev tiv thaiv kev sib koom tes, thiab pab tiv thaiv kev puas tsuaj loj.
Rau cov phiaj xwm transformer, xaiv txoj hauv kev hauv av tsis yog ib qho kev nthuav dav xwb - nws cuam tshuam ncaj qha rau kev nyab xeeb, khoom siv lub neej, thiab cov nqi tu.
Yog Transformermuab cov kev daws teeb meem transformer ua tiav rau cov kev lag luam sib txawv, suav nrog cov roj-immersed transformers, qhuav-hom transformers, faib transformers, fais fab mov transformers, thiab customized substation daws tsim nyob ib ncig ntawm tej yam yuav tsum tau ua.
Dab tsi yog Neutral Ground Resistor?

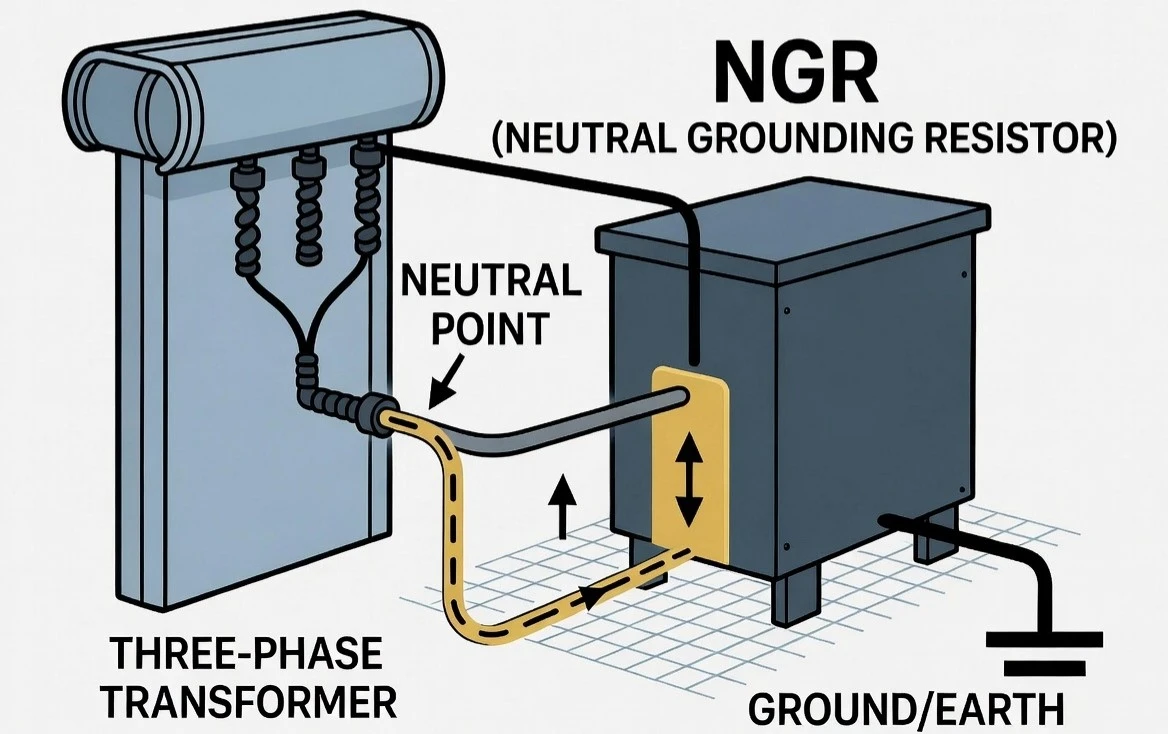

A nruab nrab hauv av resistoryog ib tug resistor ntsia nruab nrab ntawm
qhov nruab nrab point ntawm lub transformer los yog generator thiab lub ntiaj teb av.
Nyob rau hauv ib txwm ua hauj lwm tej yam kev mob, me me los yog tsis muaj tam sim no ntws los ntawm lub resistor. Txawm li cas los xij, thaum ib qho - kab - rau - qhov ua txhaum hauv av tshwm sim, NGR tsimtswj tsis kamnyob rau hauv txoj kev hauv av thiab txwv tus nqi ntawm qhov txhaum tam sim no.
Yog tsis muaj qhov nruab nrab hauv av resistor, txhaum tam sim no tuaj yeem ua siab heev. Qhov no yuav ua rau muaj kev ntxhov siab loj rau:
Transformer windings
Cov khoom siv hloov pauv
Cables thiab busbars
Generator rwb thaiv tsev systems
Cov cuab yeej tiv thaiv
Los ntawm kev tswj qhov txhaum tam sim no, ib qho nruab nrab hauv av resistor tso caitiv thaiv relaystxhawm rau txheeb xyuas qhov tsis raug thiab tshem tawm cov ntu cuam tshuam ua ntej cov khoom siv loj yuav tshwm sim.
Yuav Ua Li Cas Ib Nrab Av Resistor Ua Haujlwm?
Lub tswv yim tseem ceeb tom qab qhov nruab nrab hauv av resistor yog qhov yooj yim:nws ntxiv tsis kam ntawm cov hluav taws xob nruab nrab thiab hauv av.
Thaum muaj teeb meem hauv av, tus resistor txwv qhov tam sim no ntws los ntawm txoj kev txhaum. Tus nqi kuj raug xaiv raws li qhov yuav tsum tau ua txhaum tam sim no thiab cov yam ntxwv ntawm lub tshuab hluav taws xob.
Hauv kev xyaum, engineers xav txog ntau yam thaum xaiv qhov kev ntsuam xyuas NGR:
Qhov system voltage
Transformer muaj peev xwm
Kev tiv thaiv av txhaum cai
Cov cuab yeej tiv taus muaj peev xwm
Kev siv hluav taws xob lossis cov qauv kev lag luam
Cov phiaj xwm sib txawv xav tau cov tswv yim sib txawv hauv av. Ib qho kev lag luam me me yuav xav tau qhov sib txawv nruab nrab hauv av tsim piv nrog cov chaw siv hluav taws xob loj lossis cov ntaub ntawv hyperscale.
Vim li cas thiaj siv Neutral Ground Resistor?
Kev sib txuas ncaj qha hauv av muab qhov tsawg heev - txoj kev tiv thaiv rau qhov txhaum tam sim no. Thaum qhov no tso cai rau kev tiv thaiv ceev ceev, nws tseem tuaj yeem nthuav tawm cov cuab yeej rau siab thermal thiab mechanical stress.
Ib qho nruab nrab hauv av resistor muab kev tswj xyuas los ntawm kev txwv qhov txhaum tam sim no rau aqib kev nyab xeeb.
| Tau txais txiaj ntsig | Kev piav qhia |
|---|---|
| Fault tam sim no txwv | Khaws hauv av txhaum tam sim no nyob rau hauv ib qho kev tswj hwm |
| Transformer tiv thaiv | Txo thermal thiab mechanical stress ntawm transformer windings |
| Txhim kho kev nyab xeeb | Pab txo qis arc flash zog thiab cov cuab yeej puas tsuaj |
| Zoo dua relay kev sib koom tes | Tso cai rau cov cuab yeej tiv thaiv ua haujlwm kom raug |
| Txo downtime | Pab cais cov kev ua yuam kev thiab zam kev cuam tshuam ntau dua |
| Cov cuab yeej siv lub neej ntev dua | Txo cov kev ntxhov siab tsis tsim nyog ntawm cov khoom siv hluav taws xob |
Rau ntau lub tshuab hluav taws xob tseem ceeb, qhov sib npaug ntawm kev tiv thaiv thiab kev txuas ntxiv yog qhov laj thawj tseem ceeb ntawm engineers xaiv nruab nrab grounding resistors.
Daim ntawv thov s ntawm Neutral Ground Resistors
Nruab nrab hauv av resistors yog siv thoob plaws ntau qhov kev lag luam uas txhim khu kev qha hluav taws xob yog qhov tseem ceeb.
Utility Power Systems
Cov khoom siv hluav taws xob feem ntau siv nruab nrab hauv av resistors hauv substations thiab faib tes hauj lwm los txhim kho daim phiaj kev cia siab.
Lawv feem ntau siv nrog:
Fais fab transformers
Fais fab transformers
Generator transformers
Renewable zog collector systems
Rau cov khoom siv hluav taws xob, lub hom phiaj feem ntau yog txwv tsis pub muaj kev puas tsuaj thaum muaj teeb meem thaum tswj kev ua haujlwm ruaj khov thoob plaws hauv lub network.
Cov chaw tsim khoom, chaw mining, tshuaj nroj tsuag, thiab cov chaw siv roj thiab roj feem ntau vam khom nruab nrab -voltage hluav taws xob systems. Cov kev ua txhaum uas tsis tau npaj tseg tuaj yeem cuam tshuam kev tsim khoom thiab tsim kom muaj nqi qis.
Ib qho nruab nrab hauv av resistor pab tiv thaiv:
Industrial transformers
Cov chaw tswj lub cev muaj zog
Nruab nrab-voltage switchgear
Factory faib tshuab
Hauv cov cheeb tsam no, kev tiv thaiv cov cuab yeej puas tsuaj feem ntau tsuas yog ib qho tseem ceeb kom tshem tawm qhov txhaum sai sai.
Cov chaw zov me nyuam muaj cov kev xav tau ntawm lub zog loj heev. Nrog rau kev loj hlob ntawm AI ua haujlwm thiab siab dua - cov khoom siv suav nrog, kev ntseeg tau ntawm hluav taws xob tau dhau los ua qhov tseem ceeb dua li qhov qub.
Nruab nrab hauv av resistors txhawb cov ntaub ntawv chaw hluav taws xob los ntawm kev pab tiv thaiv:
Nruab nrab-voltage transformers
Backup generators
Switchgear systems
Cov cuab yeej siv hluav taws xob tseem ceeb
Ib qho chaw zoo- tsim hauv av yuav pab txo qis kev pheej hmoo ntawm kev kaw tsis tau xav txog thiab txhim kho kev muaj zog tag nrho.
Hnub ci ua liaj ua teb, cua fais fab nroj tsuag, thiab roj teeb lub zog cia cov tshuab tseem xav tau kev tiv thaiv hauv av txhim khu kev qha.
Neutral av resistors feem ntau siv nrog:
Cua turbine transformers
Hnub ci kauj ruam - nce transformers
Sau substations
Lub zog cia systems
Cov dej num txuas ntxiv tuaj yeem ua rau muaj kev txhaum tshwj xeeb vim lawv cov qauv kev faib tawm, ua kom tsim cov av tsim nyog tshwj xeeb yog qhov tseem ceeb.
Cov txheej txheem tsis sib xws
Cov engineers tuaj yeem xaiv txoj hauv av sib txawv nyob ntawm qhov yuav tsum tau ua hauv lub cev.
| Txoj kev hauv av | Yam ntxwv | Cov ntawv thov siv |
| Khoom hauv av | Tso cai rau kev ua txhaum tam sim no thiab kev tiv thaiv ceev ceev | Kev faib khoom siv hluav taws xob |
| Tsawg kuj grounding | Txwv tsis pub tam sim no rau qib tswj | Industrial nroj tsuag thiab substations |
| High kuj grounding | Txwv tam sim no mus rau theem qis heev | Cov chaw tseem ceeb uas xav tau kev txuas ntxiv |
| Ungrounded system | Tsis txhob txwm grounding txuas | Cov ntawv thov tshwj xeeb |
Qhov nruab nrab hauv av resistor feem ntau yog siv nyob rau hauv qis tsis kam grounding (LRG) thiab siab tsis kam grounding (HRG).
Yuav Ua Li Cas Xaiv Txoj Cai Neutral Av Resistor
Xaiv qhov tseeb nruab nrab hauv av resistor yuav tsum tau ntau tshaj qhov tsuas yog xaiv tus nqi kuj. NGR yuav tsum ua kom haum rau tag nrho cov qauv tsim hluav taws xob.
Cov ntsiab lus tseem ceeb suav nrog:
Lub resistor yuav tsum tau ntsuas rau kev khiav hauj lwm voltage ntawm lub transformer los yog generator.
Cov ntawv thov ib txwm muaj xws li:
| Qib voltage | Tej kev siv |
| 480V | Kev lag luam thiab kev lag luam qis -voltage systems |
| 4.16 kV – 13.8 kV | Cov nroj tsuag muaj thiab nruab nrab -voltage networks |
| 33kV e o | Utility thiab renewable zog systems |
NGR yuav tsum tiv thaiv qhov kev cia siab tam sim no rau lub sijhawm xav tau.
Cov ntsiab lus tseem ceeb muaj xws li:
| Parameter | Kev piav qhia |
| Rated voltage | Qhov siab tshaj qhov system voltage qhov resistor tuaj yeem ua tau |
| Kuj tus nqi | Txiav txim qhov txhaum tam sim no txwv |
| Fault tam sim no ntsuas | Maximum av txhaum tam sim no muaj peev xwm |
| Lub sijhawm ntsuas | Lub sij hawm tus resistor tuaj yeem tiv taus cov xwm txheej txhaum |
| Rwb thaiv tsev theem | Voltage tiv taus kev ua haujlwm |
| Kev ntsuas qhov ntsuas | Kev tiv thaiv ib puag ncig |
Nruab nrab hauv avResistorthiab Transformer Compatibility
Ib qho nruab nrab hauv av resistor yuav tsum tau ua tib zoo sib koom tes nrog tus tsim transformer.
Engineers yuav tsum xav txog:
Transformer winding configuration
Muaj kev sib txuas nruab nrab
Luv -circuit withstand peev
Kev tiv thaiv relay teeb tsa
Grounding transformer xav tau
Rau cov tshuab uas tsis muaj qhov nruab nrab ntawm qhov tsis muaj nyob, yuav tsum muaj qhov hloov pauv hauv av nrog rau qhov nruab nrab hauv av resistor.
Yog Transformerua haujlwm nrog cov neeg siv khoom los muab cov kev daws teeb meem transformer uas phim hauv av, kev tiv thaiv, thiab kev ua haujlwm.
Nruab nrab av Resistor vs Neutral Grounding Transformer
Txawm hais tias ob qho tib si muaj feem xyuam nrog kev siv av, lawv ua haujlwm sib txawv.
| Feature | Neutral av Resistor | Neutral Grounding Transformer |
| Lub hom phiaj tseem ceeb | Lim txwv av txhaum tam sim no | Tsim kom muaj qhov nruab nrab |
| Qhov chaw teeb tsa | Nruab nrab nruab nrab thiab hauv av | Txuas nrog lub hwj chim system |
| Daim ntawv thov tseem ceeb | Cov kab ke uas muaj cov ntsiab lus nruab nrab | Delta systems tsis muaj nruab nrab |
| Kev tiv thaiv muaj nuj nqi | Tswj fault tam sim no | Muab kev muaj peev xwm grounding |
Hauv qee qhov haujlwm, ob qho kev daws teeb meem tau siv ua ke los tsim kom muaj qhov ua tiav hauv av.
Teeb meem tshwm sim los ntawm kev tsim tsis zoo hauv av
Txoj hauv kev tsis raug hauv av tuaj yeem ua rau:
Transformer rwb thaiv tsev tsis ua haujlwm
Cov khoom siv overheating
Relay ua haujlwm teeb meem
Nce arc flash txaus ntshai
Tsis xav txog kev cuam tshuam lub zog
Cov nqi kho mob siab dua
Ib qho kev tsim qauv nruab nrab hauv av zoo txhim kho kev ntseeg tau thiab tiv thaiv cov khoom muaj txiaj ntsig hluav taws xob nyob rau lub sijhawm ntev.
Vim li cas thiaj xaiv Yawei Transformer rau Fais Fab Kev daws teeb meem?
Yog Transformermuab tag nrho transformer kev daws teeb meem rau kev siv hluav taws xob, kev lag luam, hluav taws xob tauj dua tshiab, thiab kev siv lag luam.
Cov khoom lag luam muaj xws li:
Roj-immersed hwj chim transformers
Qhuav- hom transformers
Fais fab transformers
Substation transformers
Customized transformer systems
Kev txhawb nqa engineering rau kev siv hauv av thiab kev tiv thaiv
Nrog rau kev tsim muaj peev xwm thiab kev paub dhau los hauv cov haujlwm sib txawv, Yawei Transformer txhawb cov neeg siv khoom los ntawm kev sib tham thawj zaug los ntawm kev tsim khoom thiab xa khoom.
Txawm hais tias koj xav tau lub tshuab hloov hluav taws xob rau lub chaw siv hluav taws xob, chaw tsim khoom, kev tsim hluav taws xob txuas ntxiv, lossis chaw khaws ntaub ntawv, Yawei engineers tuaj yeem pab txhim kho kev txhim kho kev ntseeg siab thiab tus nqi - daws tau zoo.
Hu rau Yawei Transformer rau Customized Transformer Solutions
Ib qho kev txhim khu kev qha hauv av pib nrog txoj cai transformer tsim thiab kev tiv thaiv zoo.
Yog Transformermuab cov kev hloov pauv hloov pauv hloov pauv rau cov khoom siv hluav taws xob, cov chaw tsim khoom, cov phiaj xwm hluav taws xob tauj dua tshiab, cov chaw khaws ntaub ntawv, thiab cov neeg cog lus EPC.
Yog tias koj tab tom npaj ib txoj haujlwm tshiab fais fab lossis hloov kho qhov hluav taws xob uas twb muaj lawm, hu rau Yawei Transformer engineers rau kev txhawb nqa thiab cov lus hais txog qhov project.
Thov ib daim ntawv tsocai niaj hnub no thiab ua haujlwm nrog Yawei Transformer los tsim kom muaj kev nyab xeeb dua, txhim khu kev qha fais fab kev lag luam.
