Qhov Kev Npaj thiab Lub ntsiab lus ntawm Cov Ntawv hauv Fais Fab Transformer Qauv|Yog Transformer

Thaum koj xub tuaj hla ibfais fab transformer qauv, kev sib xyaw ntawm cov tsiaj ntawv thiab cov lej tuaj yeem saib me ntsis tsis meej pem. Ib yam liS11-M-1000/10los yogSCB14-2000/10tej zaum yuav zoo li ib txoj hlua ntawm cov lej uas tsis muaj lub ntsiab lus pom tseeb.

Tab sis feem ntau muaj logic qab nws.

Ib tug transformer qauv tooj feem ntau yog siv los piav qhia txog lub transformer yam yooj yim, tsim series, rwb thaiv tsev los yog siv txoj kev, rated peev xwm, voltage theem, thiab tej zaum nws voltage kev tswj. Thaum koj paub txog cov cim sib txawv, nyeem atransformer qauv codeua tau yooj yim dua.

Rau cov engineers, EPC cov neeg cog lus, tus thawj tswj hwm qhov project, thiab pab pawg yuav khoom, qhov no yog qhov muaj txiaj ntsig zoo thaum sib piv cov cuab yeej lossis tshuaj xyuas seb lub tshuab hloov pauv puas haum rau qhov kev xav tau thawj zaug. Manufacturers xws liYog Transformerkuj tseem siv cov qauv tsim kom paub qhov txawv ntawm qhov sib txawv transformer tsim thiab kev siv.

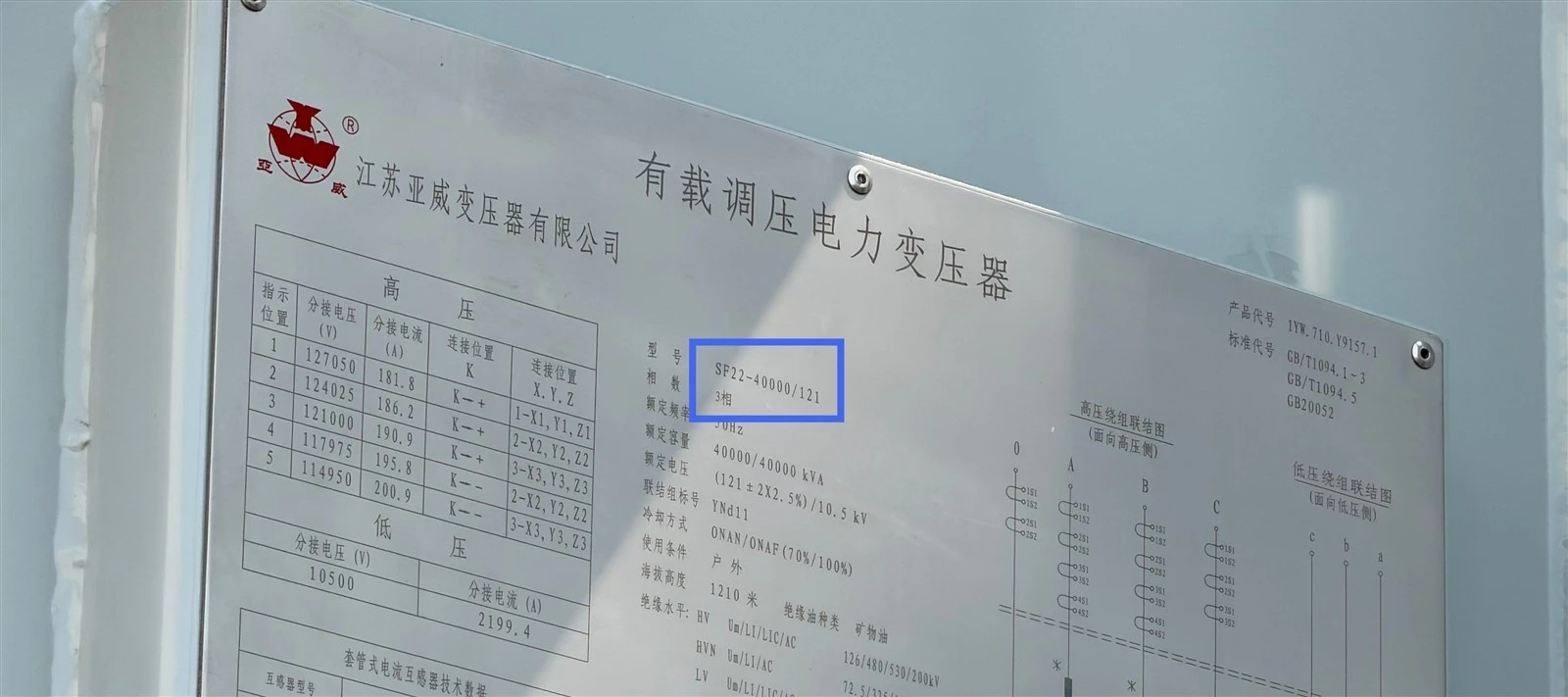

Lub Fais Fab Transformer Model Number txhais li cas?

Ib tug qauv transformer feem ntau yog ua los ntawm ob peb tsab ntawv thiab tus lej teem rau hauv ib qho kev txiav txim. Txhua ntu qhia koj qee yam txog cov cuab yeej siv.

NojS11-M-1000/10ua piv txwv:

S → 11 → M → 1000 → 10

Kev txhais dav dav yuav yog:

Qhov kev tawg zoo li no yuav pab tau, tab sis muaj ib yam uas yuav tsum nco ntsoov:transformer qauv codes tsis yog tag nrho universal. Tib tsab ntawv tuaj yeem txhais tau qee yam txawv raws li lwm tus qauv, chaw tsim khoom, lossis cov khoom lag luam. Yog li tus qauv naj npawb yuav tsum tau kuaj xyuas ua ke nrog rau daim ntawv teev npe thiab daim ntawv teev npe.

Common Letters nyob rau hauv Power Transformer Models

S - Peb-Phase Transformer

Tsab ntawvSfeem ntau yog siv los txheeb xyuas apeb-theem transformernyob rau hauv Suav transformer qauv systems.

Peb-theem transformers tau siv yuav luag txhua qhov chaw hauv cov tshuab hluav taws xob niaj hnub no, los ntawm cov chaw tsim khoom lag luam thiab cov chaw siv hluav taws xob mus rau cov tsev lag luam thiab cov phiaj xwm hluav taws xob tauj dua tshiab.

Piv txwv li,S11-1000/10feem ntau yog hais txog peb lub-theem transformer nrog lub peev xwm ntawm 1000 kVA thiab 10 kV siab- qhov ntsuas hluav taws xob.

D - Tib -Phase Transformer

Hauv qee cov qauv naming systems,Dyog siv los qhia aib zaug -theem transformer.

Tib-theem transformers feem ntau pom muaj nyob rau hauv daim ntawv thov qhov twg cov hluav taws xob thauj khoom lossis cov txheej txheem hu rau ib qho -theem tsim. Lawv tuaj yeem siv rau hauv thaj chaw, kev lag luam, kev tsheb ciav hlau, kev tswj hwm, thiab lwm yam tshwj xeeb hluav taws xob.

Tseem, nws yog qhov zoo dua tsis xav tias lub ntsiab lus ntawmDyam tsis tau kuaj xyuas cov chaw tsim khoom lub npe kev pom zoo.

O - Roj-Immered Transformer

Tsab ntawvOtuaj yeem txuam nrog ib qhoroj-immersed transformernyob rau hauv tej yam transformer qauv systems.

Cov roj-immersed transformer siv cov kua insulating rau ob qho tib si hluav taws xob rwb thaiv tsev thiab hluav taws xob hloov hluav taws xob. Qhov kev tsim kho no yog dav siv rau nruab nrab - thiab siab - transformers vim nws muab kev ua kom txias thiab txhim khu kev qha rwb thaiv tsev.

Rau cov chaw ua haujlwm loj dua thiab cov chaw tsim khoom lag luam, roj -immersed transformers tseem yog qhov kev xaiv ntau heev.

C - Cast Resin

Tsab ntawvCfeem ntau txuam nrogcam khwb cia-resin rwb thaiv tsevhauv qhuav- hom transformer qauv.

Ib qho piv txwv paub yogSCB14-2000/10. Hom transformer no siv cam khwb cia- resin rwb thaiv tsev es tsis txhob ua kua rwb thaiv tsev.

Qhov ntawd ua rau cam khwb cia-resin qhuav- hom transformers zoo haum rau ntau qhov chaw hauv tsev, nrog rau cov chaw tsim khoom, cov tsev lag luam, chaw nres tsheb hauv nroog, tsev kho mob, thiab lwm qhov chaw uas muaj hluav taws kub, kev tiv thaiv ib puag ncig, thiab kev teeb tsa yuav tsum tau ua tib zoo xav.

B - Qhuav-Hom Transformer Structure

Nyob rau hauv ib tug qauv xws liSCB 14, tsab ntawvBua ib feem ntawm lub npe rau qhuav - hom transformer qauv.

Nws tsim nyog saib tus qauv ua tiav es tsis txhob sim muab lub ntsiab lus rau ib tsab ntawv nyob rau hauv kev sib cais. Transformer qauv codes ua haujlwm raws li kev sib txuas, thiab cov ntsiab lus tseeb nyob ntawm tus qauv siv npe.

Z - Ntawm -Load Voltage Regulation

Tsab ntawvZfeem ntau yog siv los qhia txog lub transformer nrogntawm -load voltage regulation.

Piv txwv li:

SZ11-50000/110

Feem ntau tuaj yeem piav qhia txog peb lub -theem transformer nrog rau ntawm -load kais- hloov peev xwm, Series 11 tsim, ntsuas qhov muaj peev xwm ntawm 50,000 kVA, thiab 110 kV siab - qhov ntsuas hluav taws xob.

Nyob rau hauv lub tswv yim, ibntawm -load tap changer (OLTC)tso cai rau lub transformer los kho nws qhov voltage piv thaum lub transformer yog energized thiab nqa load. Qhov no yog tshwj xeeb tshaj yog pab tau nyob rau hauv kis tau tus mob substations thiab loj muaj hwj chim systems uas tswj ib tug ruaj khov tso zis voltage yog ib qho tseem ceeb.

Nkag siab cov lej hauv Transformer Models

Cov lej hauv cov qauv transformer tsis yog nyob ntawd rau kev txheeb xyuas. Ob peb ntawm lawv muab cov ntaub ntawv ceev ceev txog lub transformer qhov kev ntsuam xyuas thiab cov khoom series.

Series Number

Cov naj npawb xws li11, 13, thiab 14tuaj yeem txheeb xyuas cov khoom lag luam tshwj xeeb lossis tsim tsim.

Piv txwv li, koj tuaj yeem pom cov qauv xws li:

Raws li cov khoom lag luam thiab cov qauv siv tau, cov qauv tsim yuav muaj feem xyuam nrog lub tshuab hloov pauv tus qauv tsim, qib poob, lub zog- cov kev xav tau ua tau zoo, lossis cov khoom tsim.

Yog li, piv txwv li,11yuav tsum tsis txhob yuam kev rau qhov ntsuas hluav taws xob 11 kV. Nws yog feem ntau yog ib tug series npe.

Rated Peev Xwm

Ib tug lej xws li630, 1000, 1600, 2000 lossis 50000nquag sawv cev rau lub transformerrated peev hauv kVA.

Piv txwv li:

S11-M-1000/10

qhia tias muaj peev xwm ntsuas ntawm:

1000 kVA ua

Ib yam li ntawd:

SZ11-50000/110

qhia:

50,000 kVA=50 MVA

Rated peev qhia rau koj paub meej npaum li cas lub hwj chim transformer yog tsim los ua raws li nws cov kev ua hauj lwm teev. Nws yog ib yam ntawm cov thawj engineers saib thaum xaiv ib tug transformer rau ib tug hluav taws xob system.

Rated Voltage

Tus lej tom qab lub peev xwm feem ntau qhia txog qhovsiab - qhov ntsuas hluav taws xob.

Piv txwv li:

S11-M-1000/10

tuaj yeem nkag siab zoo li:

Rated peev:1000 kVA ua

High- qhov ntsuas hluav taws xob:10 kV

Rau ib tug loj zog transformer:

SZ11-50000/110

tuaj yeem qhia:

Rated peev:50,000 kVA

High- qhov ntsuas hluav taws xob:110 kV ua

Qhov qis- qhov ntsuas hluav taws xob feem ntau yog muab cais rau hauv cov lus qhia transformer.

CommonYawei Transformer Model Piv txwv

Saib ntawm ntau qhov piv txwv ib sab ua rau lub npe yooj yim nkag siab.

Cov no yog cov piv txwv yooj yim npaj los piav qhia txog lub ntsiab lus ntawm lub npe. Cov qauv transformer tiag tiag los ntawm Yawei Transformer tuaj yeem muaj cov tsiaj ntawv ntxiv, tus lej, lossis daim ntawv thov - cov npe tshwj xeeb nyob ntawm cov khoom.

Yuav Ua Li Cas Nyeem Ib Tus Qauv Transformer kom raug

Kev nyeem cov qauv yog thawj kauj ruam tseem ceeb, tab sis koj yuav tsum tsis txhob tso tseg.

Pib los ntawm kev txheeb xyuas covhom transformer. Puas yog roj-immersed transformer, qhuav-hom transformer, cam khwb cia-resin transformer, ncoo-mounted transformer, grounding transformer, lossis lwm qhov tshwj xeeb tsim? Qhov ntawd tam sim ntawd txo qis rau daim ntawv thov thiab cov kev xav tau ntawm kev teeb tsa.

Tom ntej no, kos lubrated peevthiabqib voltage. Ib qho 1000 kVA, 10 kV tis transformer yog pom tseeb rau lub luag haujlwm sib txawv ntawm 50 MVA, 110 kV fais fab tuag.

Txoj kev tswj hluav taws xob yog lwm qhov tseem ceeb. Lub transformer nrog ib qho off- Circuit Court kais changer yog txawv ntawm ib tug nruab nrog ib tugOLTC. Thaum qhov hluav taws xob yuav tsum tau hloov kho thaum lub tshuab hluav taws xob tseem muaj zog, ntawm - kev tswj qhov hluav taws xob tuaj yeem yog qhov yuav tsum tau ua.

Tom qab ntawd, tag nrho cov kev qhia tshwj xeeb xav tau kom zoo dua. Cov tsis tseem ceeb muaj xws li impedance voltage, tsis muaj-load poob, load poob, rwb thaiv tsev theem, txias txoj kev, kub nce, vector pawg, luv-circuit withstand peev xwm, enclosure tiv thaiv, thiab cov qauv siv.

Hauv lwm lo lus, tus qauv tooj muab rau koj thawj daim duab. Cov ntaub ntawv sau rau hauv seem.

Xaiv txoj cai Transformer nrog Yawei

Kev nkag siabfais fab transformer qauv toojtuaj yeem ua rau cov txheej txheem xaiv tsis nyuaj, tshwj xeeb tshaj yog thaum koj sib piv ntau yam khoom uas muaj peev xwm zoo sib xws.

Yog Transformermanufactures ntau yam khoom transformer, nrog rauroj-immersed transformers, qhuav-hom transformers, fais fab transformers, faib transformers, renewable zog transformers, thiab customized transformer dawsrau kev siv hluav taws xob, kev lag luam, kev tsim kho vaj tse, kev lag luam, thiab kev tsim hluav taws xob txuas ntxiv dua tshiab.

Tus qauv zoo nyob ntawm ntau dua nws cov ntawv thiab cov lej. Rated voltage, ntsuas muaj peev xwm, zaus, txias txoj kev, installation ib puag ncig, load yam ntxwv, harmonics, altitude, ambient kub, voltage regulation, thiab cov qauv siv tau tag nrho cov yuav tsum tau txiav txim siab.

Yog li, lwm zaus koj pom cov qauv transformer zoo liS11-M-1000/10los yogSCB14-2000/10, tsis txhob kho nws raws li cov khoom lag luam random. Muaj cov ntaub ntawv tseem ceeb tau ntim rau hauv ob peb lub cim. Thaum koj paub yuav ua li cas nyeem lawv, sib piv cov khoom siv hluav taws xob thiab sib txuas lus cov kev xav tau nrog cov chaw tsim khoom ua tau yooj yim dua.
